PE WPC Column Molds | Custom Extrusion Solutions

Why Buyers Choose These PE WPC Column Molds

When you source extrusion tooling for wood-plastic composite (WPC) or PVC profiles, the usual concerns are dimensional consistency across long production runs, surface finish on the finished profile, and how quickly a supplier can turn a drawing into a working mould. A column mould that is not machined to the right tolerance shows up as wall-thickness variation and scrap on the line, which is exactly what a buyer wants to avoid before committing to a batch.

These PE WPC column moulds are designed and manufactured by Hubei chuangjia mould co.,LTD, a factory in Huangshi, Hubei province that specialises in plastic injection and extrusion tooling. The moulds are machined on CNC equipment in our own workshop, so the cavity geometry, parting surfaces and cooling layout are controlled in-house rather than outsourced. For a buyer, that means one accountable supplier for the tool, the machining and the follow-up adjustments during trial runs.

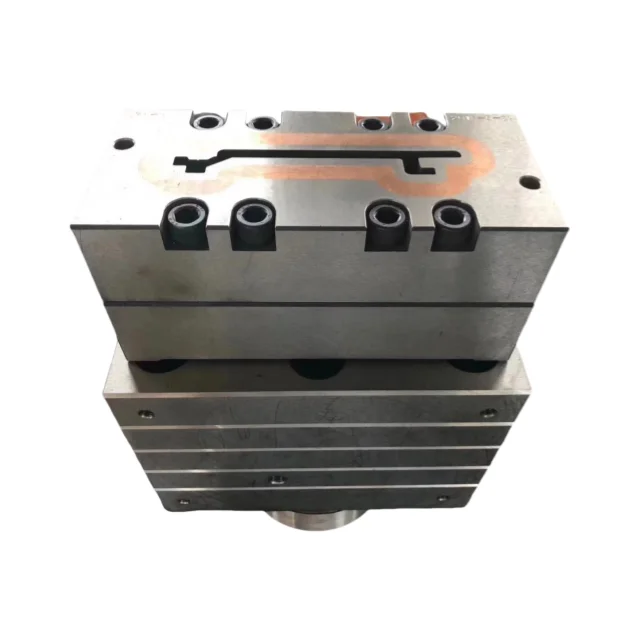

Machined column mould cavity with precision-machined profile slots.

What you gain as a purchaser is a tool that is ready to run against your own extrusion line, with the supplier able to discuss profile dimensions, steel selection and trial-run support before you place the order. The value is not a single feature but the combination of in-house machining, profile-specific experience and a factory that has been exporting moulds to markets including Japan, South Korea and Iran.

Product Parameters

The table below lists the key ordering and supply details for this product line. For profile-specific dimensions, cavity geometry and steel grade, send your profile drawing or sample so we can confirm the exact specification for your line.

Product Advantages

• In-house machining: cavities are produced on our own CNC equipment, giving us direct control over tolerance and finish.

• Profile experience: the factory focuses on plastic profile moulds, including PVC, PE and WPC, so the tooling is built around real extrusion behaviour rather than generic mould practice.

• Export-proven supply: moulds have been supplied to customers in Japan, South Korea and Iran, alongside the domestic market.

• Single-point accountability: design, machining and trial-run adjustment sit with one manufacturer, which shortens the feedback loop when a profile needs fine-tuning.

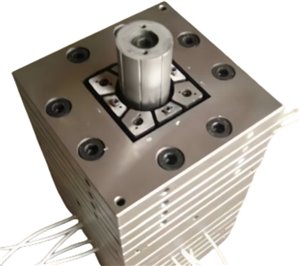

Column mould assembly showing the central profile column and bolted base plates.

Company Strength

Hubei chuangjia mould co.,LTD is based in Huangshi, Hubei province, and operates as a design-and-manufacture plastic injection and extrusion mould factory. The team includes experienced profile-mould designers and debugging personnel, and the company has continued to invest in R&D to develop new mould products year by year.

Our business covers provinces across China and has expanded to export markets including Japan, South Korea and Iran, where customers have come to trust the combination of technical strength, product quality, reasonable pricing and after-sales service. The factory is equipped with CNC machining centres, which we use to machine the mould components shown on this page.

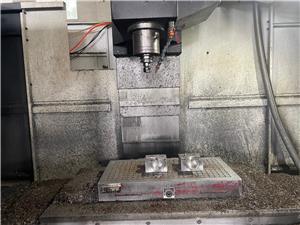

CNC machining centre used to produce mould components in our workshop.

Application Cases

Column moulds of this type are used to produce hollow and solid column profiles for WPC and PVC products, such as decorative columns, fencing posts and architectural trim. Because the mould is made to the customer's own profile drawing, the same tooling approach can be adapted to different column cross-sections and wall thicknesses.

If you have a specific column profile in mind, send us the drawing or a sample. We will confirm whether the profile can be produced with this mould type and what adjustments are needed for your extrusion line.

Process and Quality Control

Each mould moves through a defined workflow: profile design review, steel selection, CNC machining of the cavity and components, assembly, and trial-run debugging before delivery. The debugging stage is where profile dimensions and surface finish are checked against the drawing, and adjustments are made in-house so the tool arrives ready to run.

Factory site of Hubei chuangjia mould co.,LTD.

Frequently Asked Questions

What is the minimum order quantity?

MOQ depends on the profile and tooling complexity. Send us your profile drawing and we will confirm the minimum quantity for your specific mould.

Can the mould be made to my own profile drawing?

Yes. These column moulds are custom-made to the customer's profile drawing, so the cavity geometry follows your design rather than a fixed catalogue shape.

How is the mould packed and shipped?

Moulds are packed for safe transport and shipped to your destination. Confirm your port and delivery terms when requesting a quotation so we can include the correct packing and shipping arrangement.

What payment methods do you accept?

Payment terms are confirmed on the quotation. Contact us with your order details and we will provide the applicable terms for your market.

Can you provide samples or a trial run?

Trial-run debugging is part of our process before delivery. For sample policy and trial arrangements, please confirm your requirements so we can advise what applies to your order.

Do you offer OEM or logo customisation?

We manufacture moulds to customer specifications. If you need specific branding or marking on the tooling, tell us your requirement and we will confirm what can be accommodated.

Which materials can this mould process?

This mould line is designed for PE, PVC and wood-plastic composite (WPC) profiles. Confirm your exact material and profile so we can verify compatibility before ordering.

How do I get a quotation?

Send your profile drawing, material, quantity and destination port. We will confirm the specification and provide a quotation for your project.

Request Product Details

To get an accurate quotation, share your profile drawing, target material, quantity and destination port. This lets us confirm the mould specification, lead time and shipping arrangement for your line.
